@[uto] GH-PlugIn to create and visualize vectorfields

v1.0.1.0 release for grasshopper 0.8.0013


flowL is a plug-in to visualize a vector field, generated trough
positive and negative point charges.
The path lines are calculated with the "Runge-Kutta 4th Order
Method" short "RK4", developed by the German mathematicians
C. Runge and M.W. Kutta. around 1900.

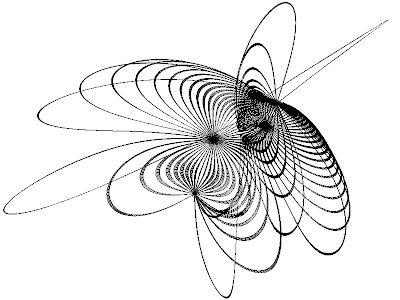

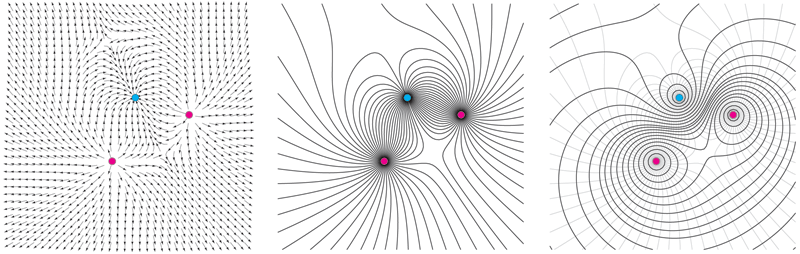

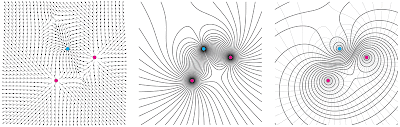

  • vectorfield: generated with 2 positive (magenta) and  1 negative (cyan) charges

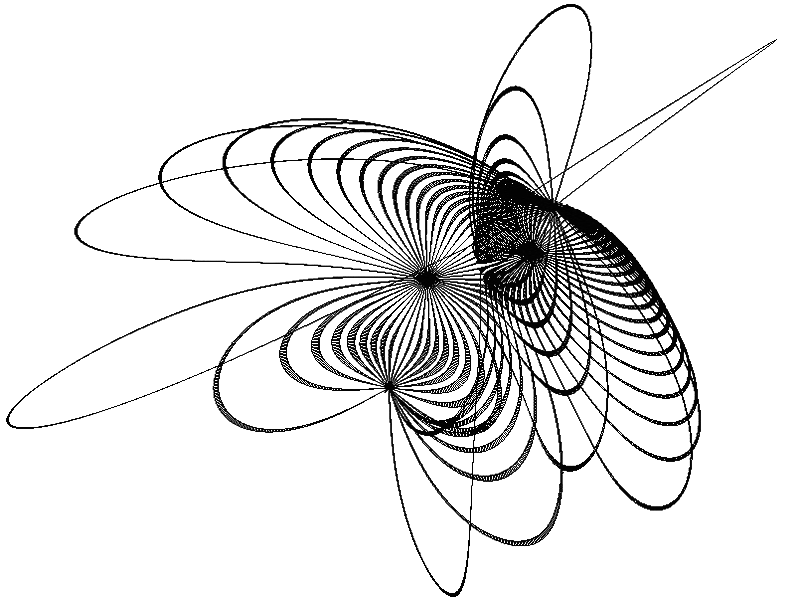

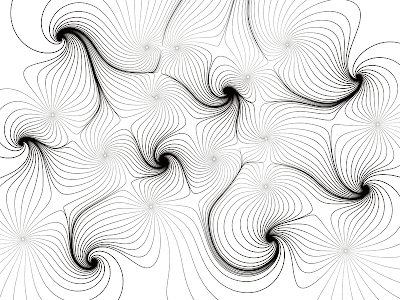

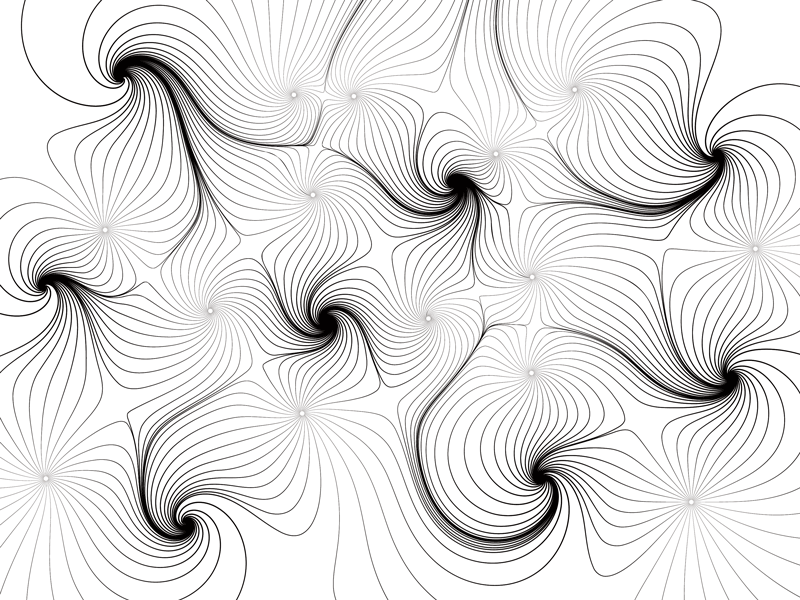

  •  streamlines/pathlines: paths following the directions of the vector-field
  •  equipotential lines:marks the areas with the same potential
